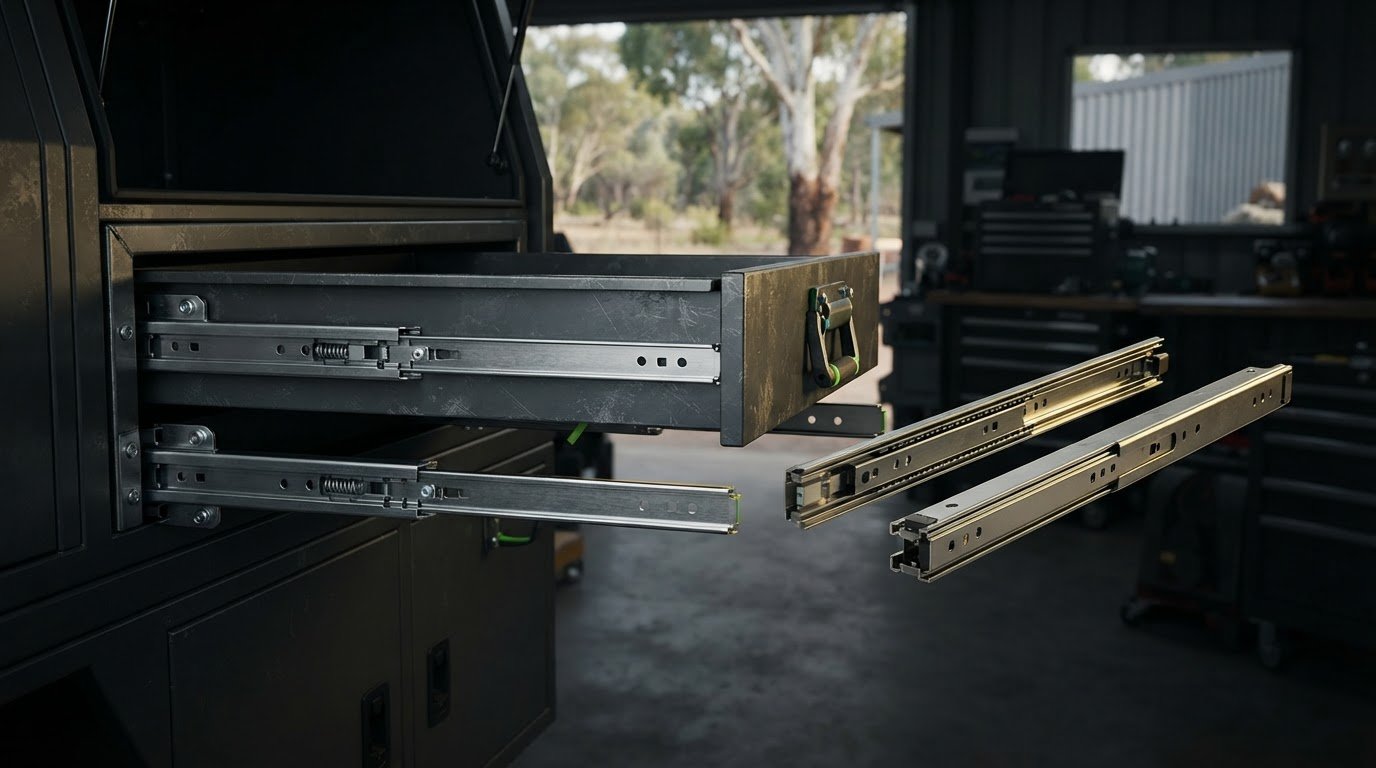

Choosing heavy duty drawer slides starts with a specific drawer and a specific model. The range name helps narrow the search, but the final choice depends on loaded weight, installation space, travel and how the drawer will be used.
This guide compares the current DuraSlide listings and highlights the questions to resolve before ordering. A slide rating does not certify the complete drawer, frame, fixings or vehicle installation.

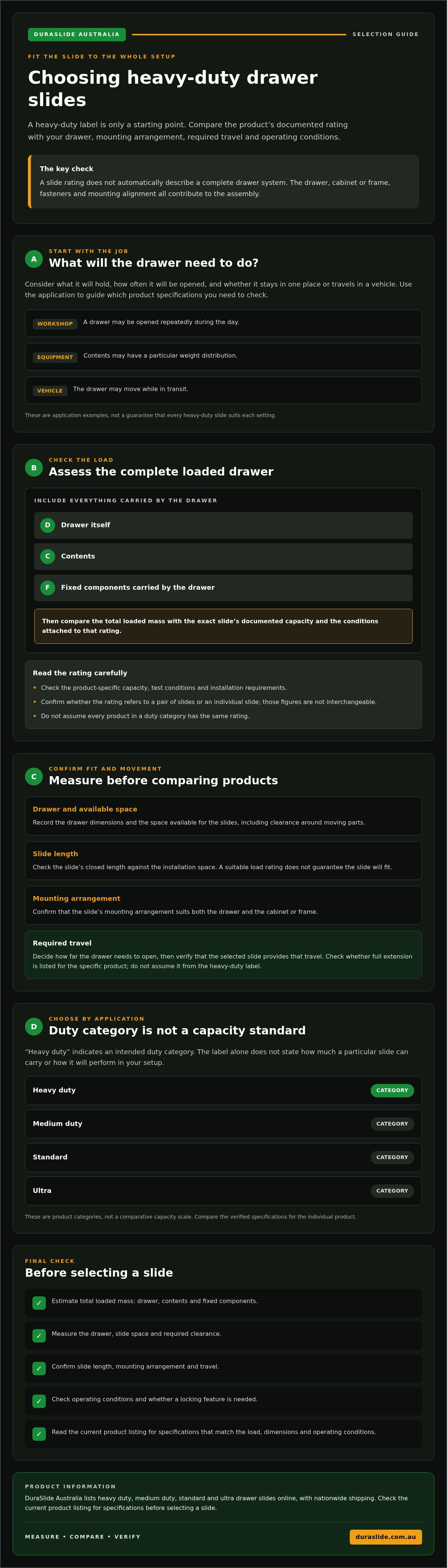

Start with the complete working load
Include the empty drawer, its heaviest intended contents and any equipment attached to the moving assembly. Record where heavier items sit and how often the drawer will be operated. Compare that requirement with the documentation for the exact slide length and mounting orientation.
For example, a drawer weighing 18 kg with 52 kg of contents has a moving mass of 70 kg. That arithmetic is a requirements estimate, not a product recommendation: it does not account for the installation structure, operating conditions or the rating's test basis. Do not double a listed capacity simply because two runners are fitted.
Compare the actual heavy duty options
| Current listing | Listed configuration | Check before ordering |
|---|---|---|
| Drawer Slide Heavy Duty | DSHD1000, non-locking matching pair; listing states 1016 mm closed length and 200 kg at full extension. | Confirm selected length, rating conditions, mounting drawing and retention arrangements. |
| Drawer Slide Heavy Duty Locking | DSHD1000L, matching locking pair; listing states 1016 mm closed length, with a further 27 mm locking tab allowance, and 200 kg at full extension. | Allow space for the tab and hand access; confirm the documented locking positions and release operation. |
| Ultra Heavy Duty Linear Slide | DTS-40 telescopic range; the listing describes a compact section and length-dependent ratings. | Obtain the drawing and rating for the selected length and orientation rather than comparing the range's highest figure. |
These details were checked against product descriptions on 19 October 2026. Confirm the supplied model and current documentation before ordering. The DTS-40 listing contains several length/rating examples; they must not be treated as interchangeable specifications.
Check the physical envelope before capacity alone
A higher listed capacity cannot solve an installation that does not fit. Record closed length, available side space, rail height, fixing surface and the space needed in front of the drawer. Include locking tabs, handles and obstructions in the envelope.
The heavy duty listings state a slide section height of 75.1 ±0.3 mm and thickness of 19.5 ±0.3 mm. Those section dimensions are not a complete installation drawing or a universal clearance instruction. Confirm the required fitting allowance with DuraSlide. For the measuring sequence, use our replacement slide measuring guide.
Decide whether locking is part of the requirement
Consider when the drawer must remain in position and whether the release can be reached comfortably. The heavy duty product descriptions specify matching left/right pairs and warn against mixing a locking runner with a non-locking runner. Keep the intended pair together.
A slide lock is not, by itself, evidence of crash restraint or a complete cargo-securing system. Vehicle installations require an appropriate assessment of the drawer, equipment and supporting structure. See our locking versus non-locking comparison for the selection questions.
Match mounting and environment to the documentation
Record whether the installation is stationary or mobile, its exposure to moisture and dust, and the planned mounting orientation. Do not assume a zinc-plated body is waterproof or maintenance-free. Follow model-specific installation and care instructions.
Changing orientation can change the applicable rating. Do not apply a percentage from another model or turn a side-mounted runner flat without checking its instructions. Confirm frame rigidity, fixing details and alignment with the installer; do not compensate for poor fit by forcing the drawer.
Your pre-order checklist
- Exact product, model and selected length.
- Total moving mass and expected use conditions.
- Closed length, section space and required travel.
- Matching pair, locking operation and release access.
- Mounting drawing, support structure and fixing requirements.
- Exposure, care requirements and any separate retention needs.
Send those details with photographs of the installation space when asking DuraSlide to clarify a selection. If the chosen model's documentation does not resolve a requirement, clarify it before ordering rather than relying on a heavy duty label.
Common buying questions
Are all heavy duty slides rated the same?
No. Use the selected model's rating and the conditions attached to it. Length, orientation and configuration can matter.
Should I choose the largest rating available?
Choose a documented fit for the application. Capacity, physical space, travel and operating features all need to work together; the largest headline number alone is not a selection method.
